Transmission

Three variants share one block: the belt transmission and the gear transmission are fixed ratios with no lever at all, and the clutch is the only place two separate shaft runs can be told apart, with its own cell right-clicked to engage or disengage. A disengaged clutch leaves both sides fully independent, one main shaft turning while the other stands dead still.

See Shaft power and the flywheel.

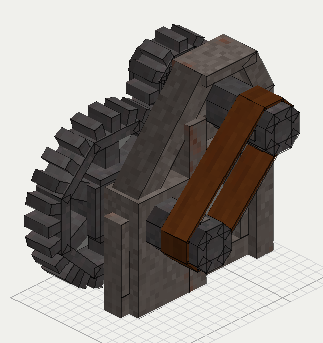

Transmission, isometric

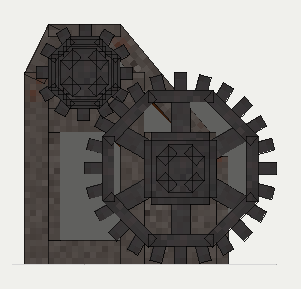

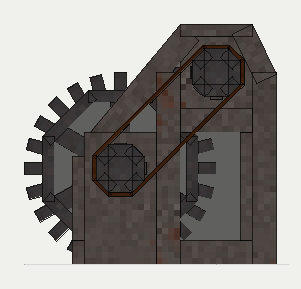

Transmission, from the northnorthTransmission, from the easteastTransmission, from the southsouthTransmission, from the westwestTransmission, the top (up)top
Transmission, isometric.

Made by

Belt Transmission (x2)
Brass Bush x 7
Heavy Cast PlateHeavy Cast PlateHeavy Cast Plate
Bolts and Nuts x 2
Belt Transmission (x2)

Needs: 3 Heavy Cast Plate, 7 Brass Bush, 2 Bolts and Nuts; makes 1 Belt Transmission (x2)

Gear Transmission (x4)
Brass Bush x 7
Bolts and NutsHeavy Cast PlateHeavy Cast PlateHeavy Cast PlateBolts and Nuts
Gear Transmission (x4)

Needs: 3 Heavy Cast Plate, 7 Brass Bush, 2 Bolts and Nuts; makes 1 Gear Transmission (x4)

Shaft Clutch
Brass Bush x 4Iron rod x 2
Heavy Cast PlateHeavy Cast PlateHeavy Cast Plate
Bolts and Nuts x 2
Shaft Clutch

Needs: 3 Heavy Cast Plate, 4 Brass Bush, 2 Bolts and Nuts, 2 Iron rod; makes 1 Shaft Clutch

Amounts are the mod's defaults; the recipe-cost level changes them (see recipe cost levels).

Crafting chain

  1. Pig iron and coke or charcoal go into the Cupola Furnace and come out as molten cast iron.
  2. The molten iron is poured in a Small Flask as heavy plates and gear blanks; the Drilling Machine and the Shaping Machine cut the Spur Gears and the pinions. The clutch takes a pair of cone castings poured in the Floor Flask in place of its gears.
  3. The frame is made at the Vice Bench with the Transmission Frame Diagram laid in its diagram slot: the heavy plates in a row across the middle, the brass bushes over them and the bolts under.
  4. The placed frame is completed by right-click construction with a wrench held in the main hand, two hits a stage.

The gears can be cut by hand at the Vice Bench.

Recipe

StepWhereTakes
FrameVice Bench3 Heavy Cast Plates and 2 Bolts and Nuts; for the Belt Transmission and the Gear Transmission 7 Brass Bushes; for the Shaft Clutch 4 Brass Bushes and 2 rods
First stage on siteConstruction2 Cast Iron Shafts; for the Belt Transmission a Spur Gear, for the Gear Transmission a Spur Gear and a pinion, for the Shaft Clutch a pair of cast cones; wrench
Second stageConstructionfor the Belt Transmission 1 Cast Iron Shaft, a pinion and a belt; for the Gear Transmission 1 Cast Iron Shaft, a Spur Gear and a pinion; wrench. The Shaft Clutch is placed with its lever and has no second stage

A broken transmission returns 80% of what was paid into it by default, rounded at random for a single part.
